passenger & utility shelters

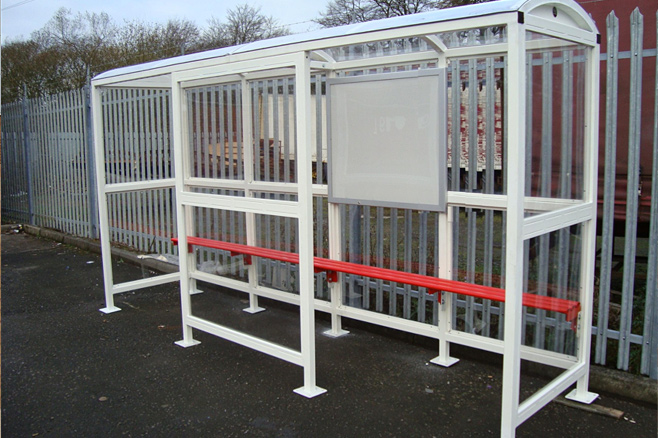

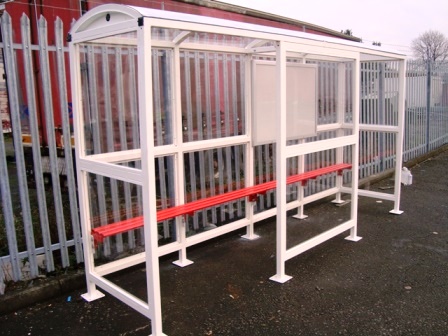

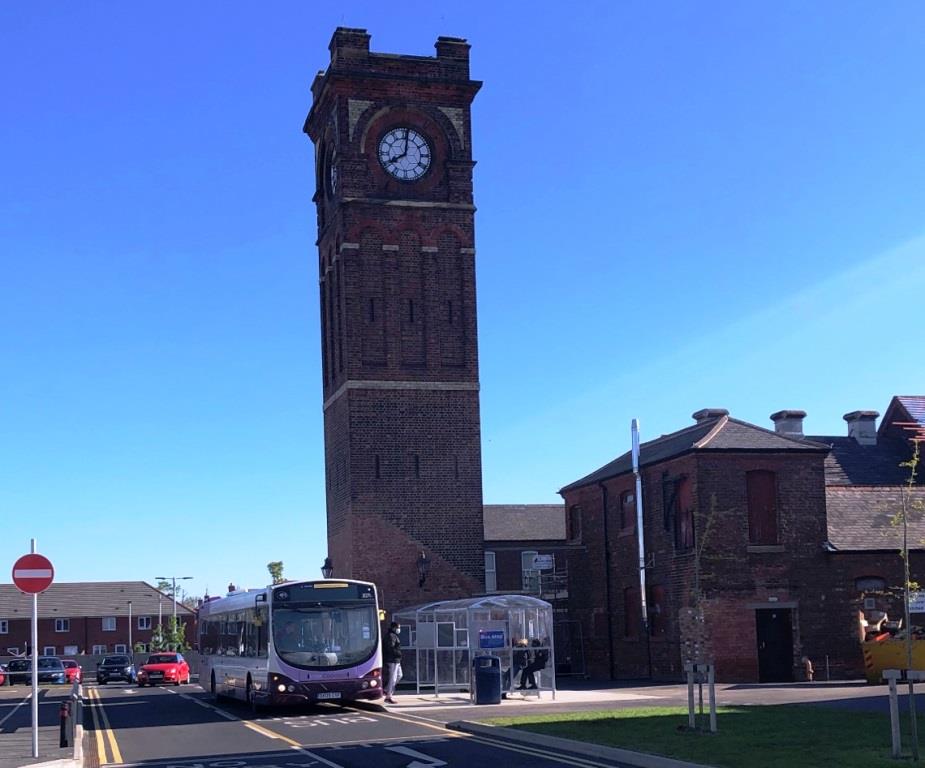

Shown 5000mm long open fronted with centre panel, perch seat & timetable case


Ref 4305 Passenger / Bus Shelter

Dimensions: 14000mm long x 2000mm wide x 2200mm high (standard unit multiples of 1000mm wide panel) can be made to suit any size

Materials Available
Mild steel

Finish
Hot dipped galvanised to BS EN ISO 1461:2009
Powder coated (to any RAL number)

Supplied With
Clear PETG Glazed roof & sides
Surface mounted base plates
Anti tamper nuts & bolts

Options
Aluminium frame
Stainless steel frame
Timetable case

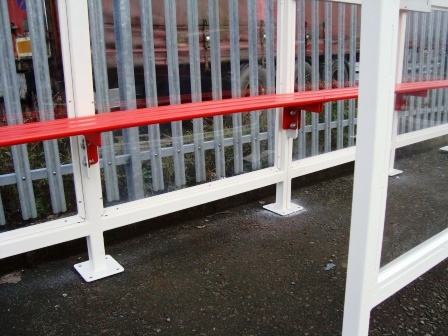

Integral perch seat
300mm extended root for submerged fixing (other depths available on request)
Internal solar or mains lighting
