canopies & walkways

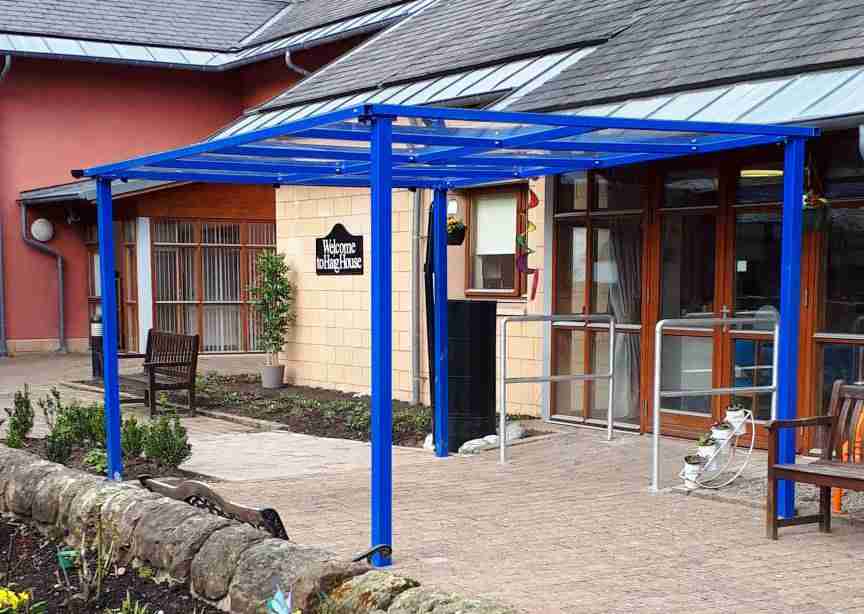

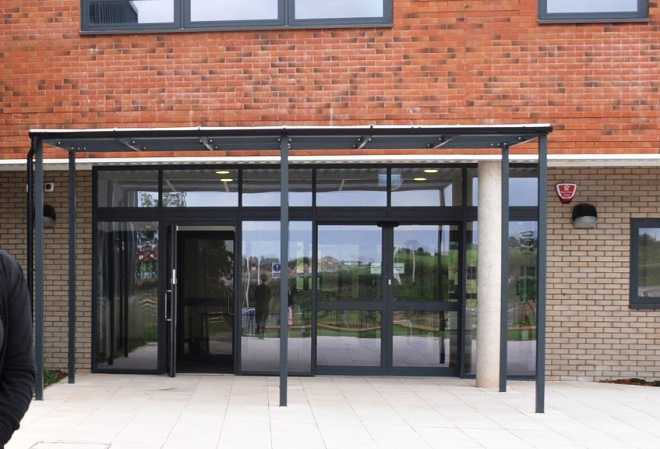

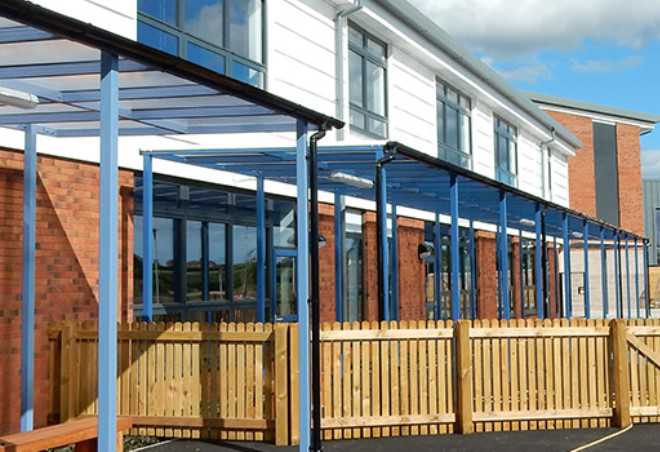

Ref 4303 Freestanding Pedestrian Walkway Canopy

Dimensions
2100mm wide x 2100mm high rising to 2600mm at rear x 4100mm long (standard unit) but can be any multiples of 1000mm long (custom sizes available on request)

Materials Available
Mild steel

Finish
Hot dipped galvanised to BS EN ISO 1461:2009

Supplied With
Clear PETG Mono pitch glazed roof
Freestanding mild steel frame
Anti tamper nuts & bolts
Surface mounted base plates

Options
Dual pitch roof
Powder coated (to any RAL number)
500mm extended root for submerged fixing (other depths available on request)
Rainwater guttering & downpipe
Twinwall or Fire rated roof sheets
Internal solar or mains lighting
Pedestrian guardrail infill panels
Glazed side panels
Perch seating
Installation service

Custom
Blueton can manufacture to clients design or specification
